Overview

ABloodStainActor is a Replay Trigger Actor generated based on the information in the header file.

Note – This actor is primarily intended for demonstration purposes. For direct management or customization, it is recommended to create your own actor or trigger using the key properties. Use UBloodStainSubSystem::StartReplayFromFile() instead.

References

Plugin	BloodStainSystem
Module	BloodStainSystem
Header	#include "BloodStainActor.h"
Source	/Plugins/BloodStainSystem/Source/BloodStainSystem/Private/BloodStainActor.cpp
Super Class	ADecalActor

Properties

Type	Name	Description
ReplayFileName	FString	Replay Target File Name without Directory Path and extension
LevelName	FString	Replay Target Level Name
PlaybackOptions	FBloodStainPlaybackOptions	Replay Playback Option
LastPlaybackKey	FGuid	Last Played Playback Key. Use for Control Playing BloodStain
bAllowMultiplePlayback	uint8 : 1	Whether to allow multiple playback.
InteractionWidgetClass	TSubclassOf<UUserWidget>	Interaction Widget Class
InteractionWidgetInstance	TObjectPtr<UUserWidget>	Current Widget Instance
SphereComponent	TObjectPtr<USphereComponent>	Interaction Overlap Shape Component

Functions

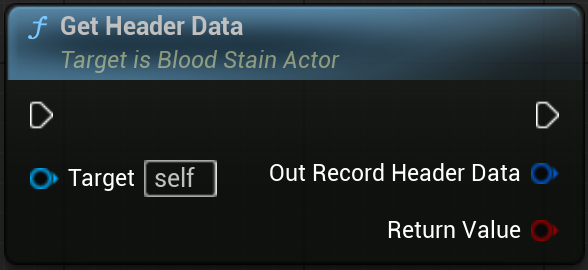

GetHeaderData

Description

Uses ReplayFileName and LevelName to retrieve the Header Data from the BloodStainSubsystem. If the data is not already loaded, it attempts to load it. Returns false if the loading fails.

Inputs

Type	Name	Description

Outputs

Type	Name	Description
FRecordHeaderData	Out Record Header Data	Replay File’s Header Data
bool	Return Value	Whether successful

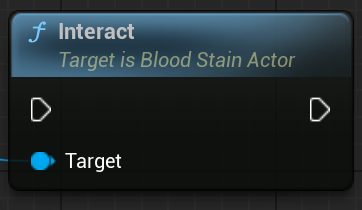

Interact

Description

Try Start Repaly

Inputs

Type	Name	Description

Outputs

Type	Name	Description
