Overview

UPlayComponent is create and attached by UBloodStainSubSystem::StartReplay. It begins recording and collecting information about the attached Actor at the moment of attachment, and upon stopping, it passes this information to the UBloodStainSubSystem before being Destroy.

References

Plugin	BloodStainSystem
Module	BloodStainSystem
Header	#include "RecordComponent.h"
Source	/Plugins/BloodStainSystem/Source/BloodStainSystem/Private/RecordComponent.cpp
Super Class	UActorComponent

Properties

Type	Name	Description
RecordOptions	FBloodStainRecordOptions	Record Option

Functions

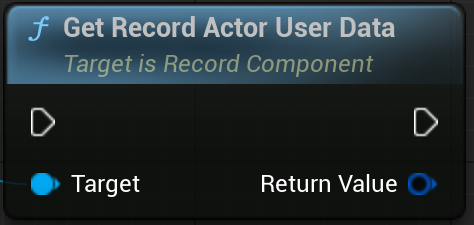

GetRecordActorUserData()

Description

Returns the FInstancedStruct that is scheduled to be saved in the file’s header data. If it has not been set, the returned data will not be valid.

Inputs

Type	Name	Description

Outputs

Type	Name	Description
FInstancedStruct	Return Value	The FInstancedStruct scheduled to be saved as the actor’s header data.

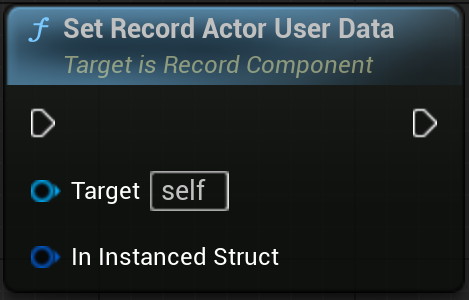

SetRecordActorUserData()

Description

Set the actor’s user data. The set data will be saved in the file’s header data.

Inputs

Type	Name	Description
FInstanced	InInstancedStruct	Information to be included in the file header as the actor’s user data.

Outputs

Type	Name	Description

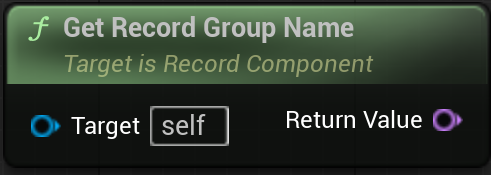

GetRecordGroupName()

Description

Return Currently Recording Group Name

Inputs

Type	Name	Description

Outputs

Type	Name	Description
FName	Return Value	Name of Record Group

Notes
