OverView

This guide introduces how to record multiple Actors within a single Group (i.e., a single file).

This tutorial assumes you have completed the Quick Start.

About Group

A Group is a collection of Actors associated with a single recording session. All recording start/stop operations and playback are performed on a per-Group basis. Each Group corresponds one-to-one with a File.

Multiple Actor Record

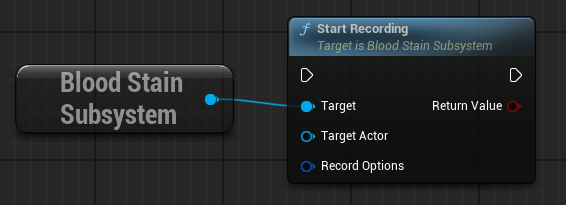

When calling UBloodStainSubSystem::StartRecording(), if the specified Group is already recording, the Actor can join the ongoing recording.

Alternatively, you can call UBloodStainSubSystem::StartRecordingWithActors().

Actors that join an existing Group recording later will use the original RecordOption set for that Group and cannot override it.

If you want to stop recording a specific Actor

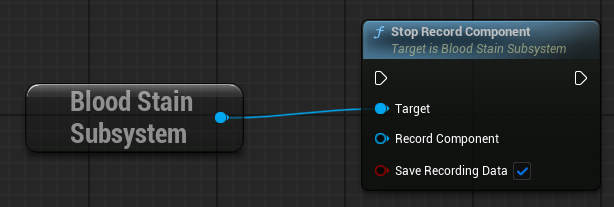

You can stop recording an Actor by calling UBloodStainSubSystem::StopRecordComponent() or when the URecordComponent is destroyed. Note that this does not stop the Group recording. Internally, the Actor’s information is maintained for the duration of MaxRecordTime.

If FBloodStainRecordOptions::bSaveImmediatelyIfGroupEmpty is set to true, the Group recording will automatically end when there are no Actors left in the Group.

BloodStain Spawn Transform

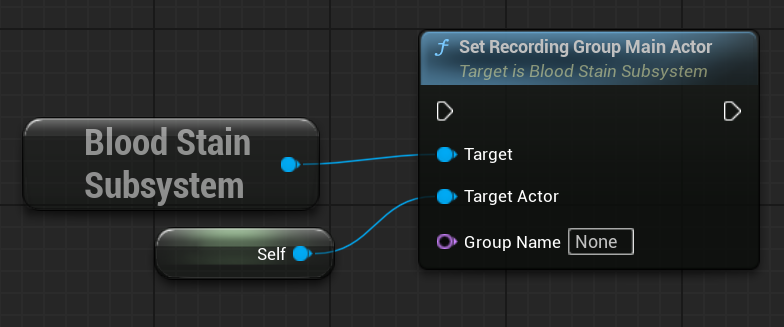

You can designate a representative Actor for the Record Group by calling UBloodStainSubSystem::SetRecordingGroupMainActor().

If not specified, the Actor that first started the recording is automatically designated as the representative. This is saved in FRecordHeaderData::SpawnPointTransform.
